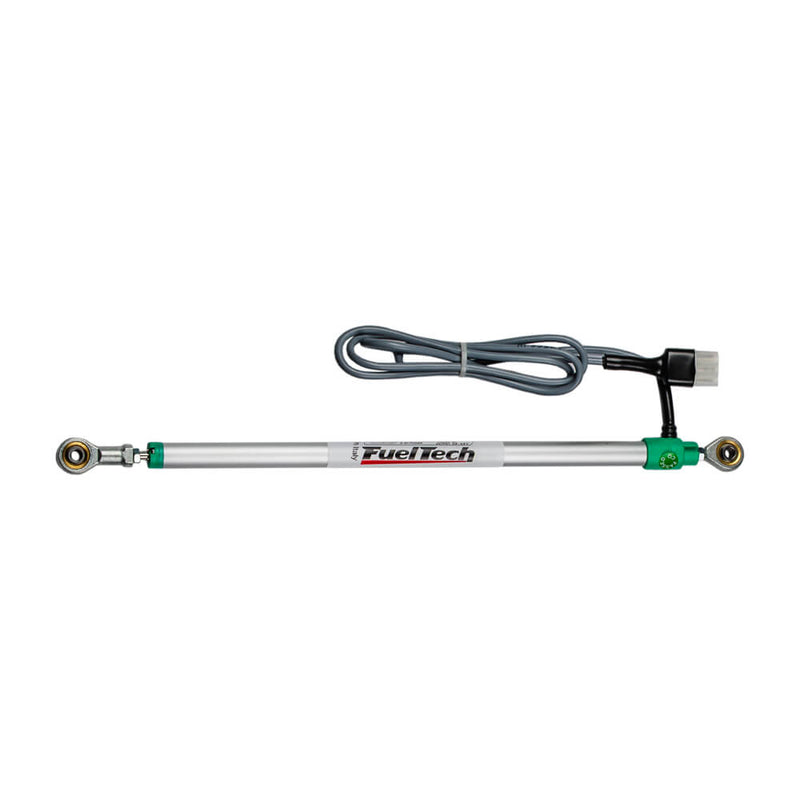

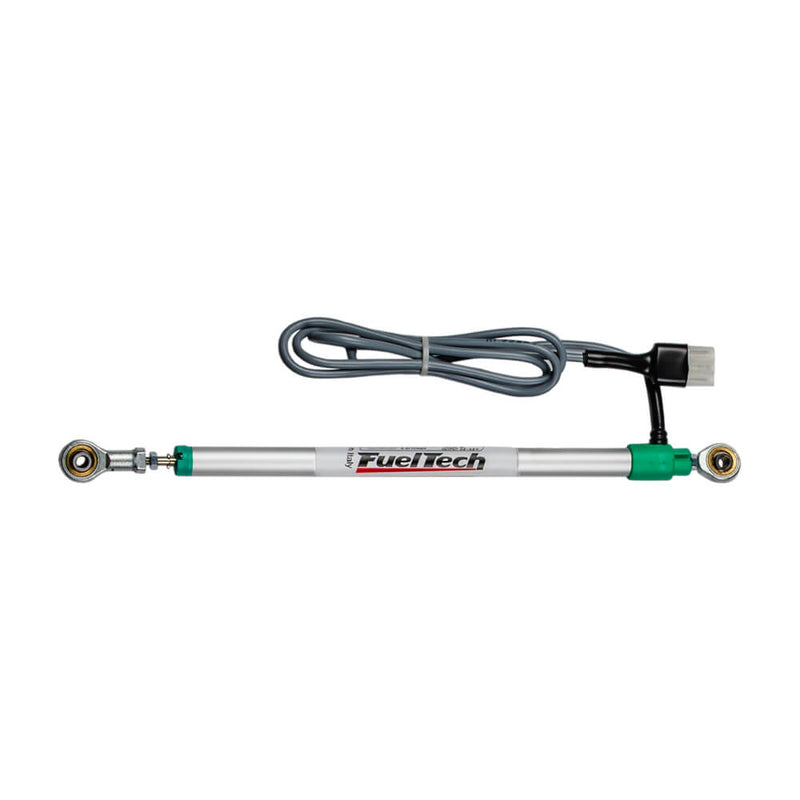

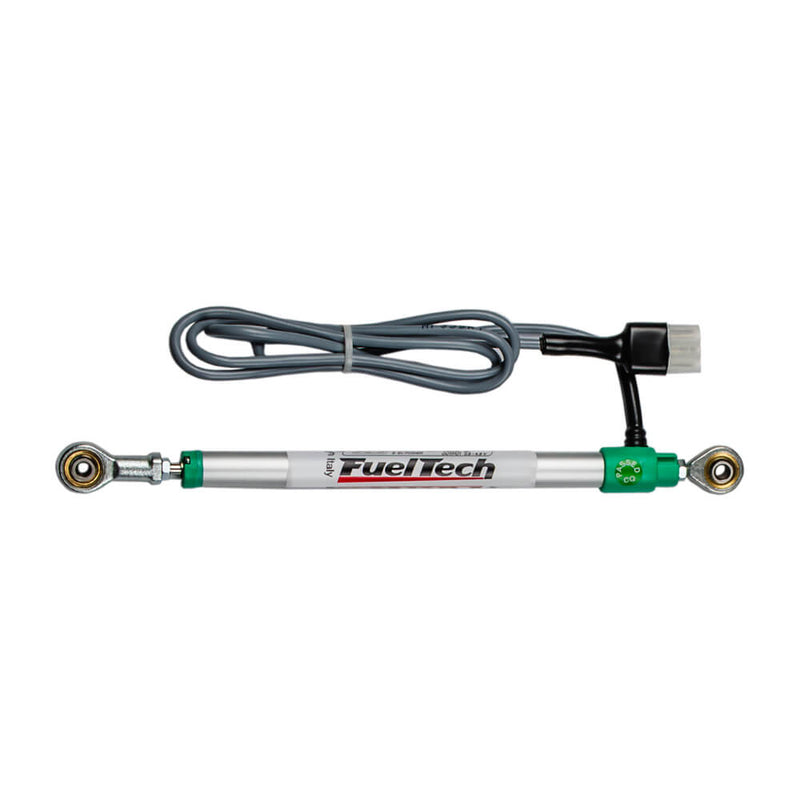

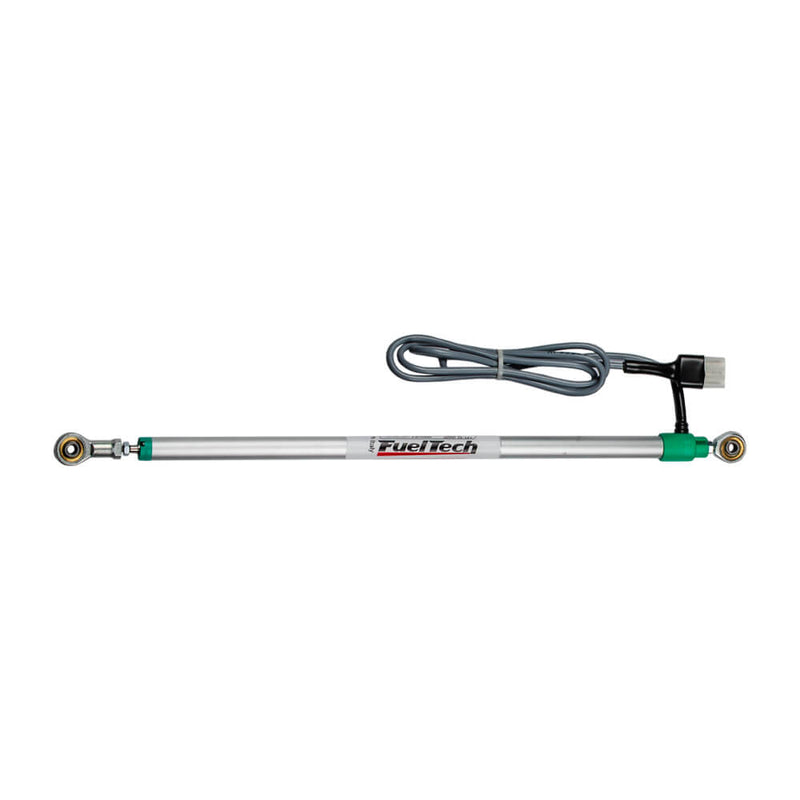

Travel Sensor PRO

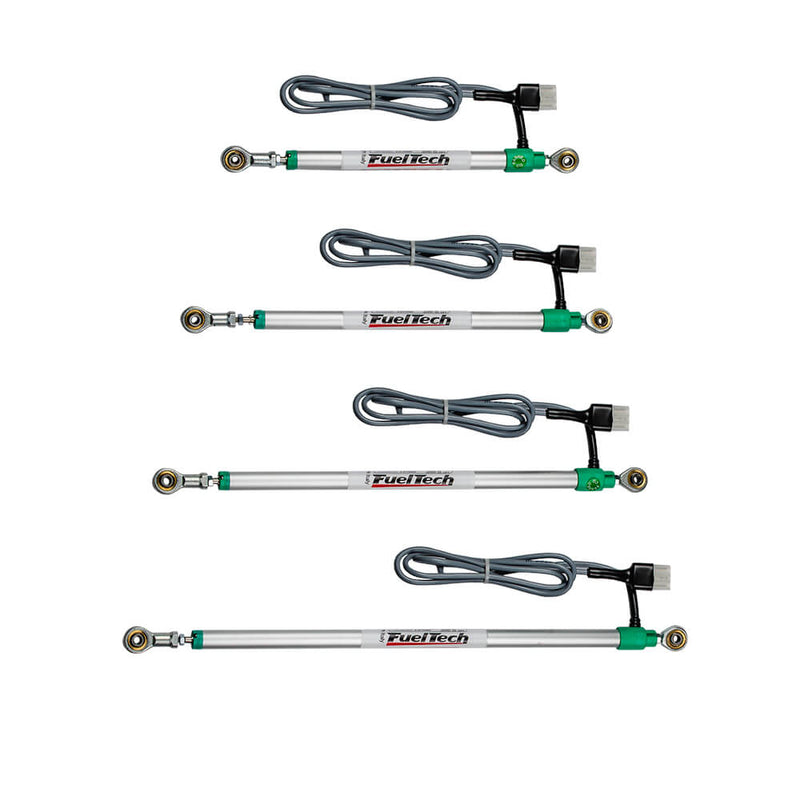

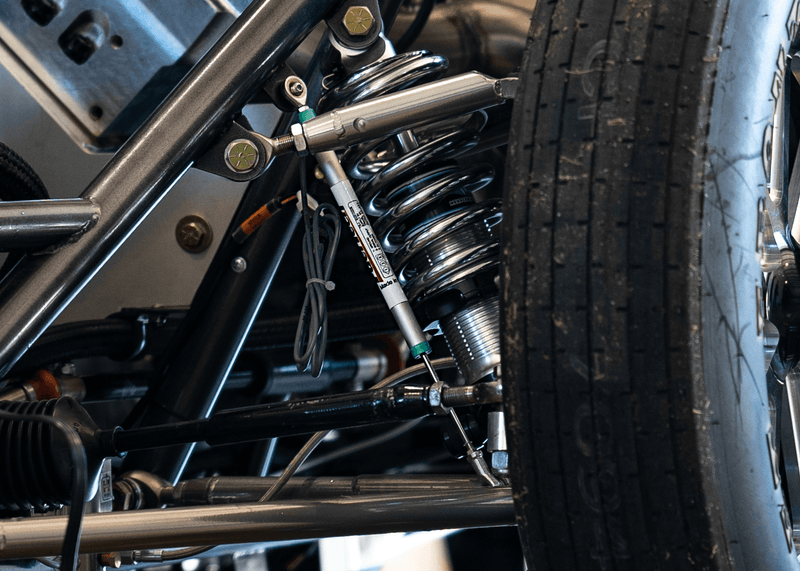

The best way of monitoring your vehicle`s suspension and body movements. Available travel lengths: 0-4", 0-6", 0-8" & 0-10".

Can be used with any FuelTech PowerFT & VisionFT ECU (FT450, FT550, FT600, FT700 & FT700PLUS)

Technical Description

4" Travel Sensor:

• Total Travel: 4"
• Length Closed: 9"
• Length Extended: 13"
• Mounting: 5mm Heim joints
• Cable Length: 41"

6" Travel Sensor:

• Total Travel: 6"
• Length Closed: 12"
• Length Extended: 18"
• Mounting: 5mm Heim joints
• Cable Length: 41"

8" Travel Sensor:

• Total Travel: 8"
• Length Closed: 13"
• Length Extended: 21"
• Mounting: 5mm Heim joints
• Cable Length: 41"

10" Travel Sensor:

• Total Travel: 10"
• Length Closed: 16"
• Length Extended: 26"
• Mounting: 5mm Heim joints
• Cable Length: 41"

Voltage/Output:

• Supply voltage: 5V
• Signal Output: 0.5V - 4.5V

Connector Pinout:

• Pin 1 - Ground (Brown)
• Pin 2 - Signal (Yellow)
• Pin 3 - 5V (Blue)
